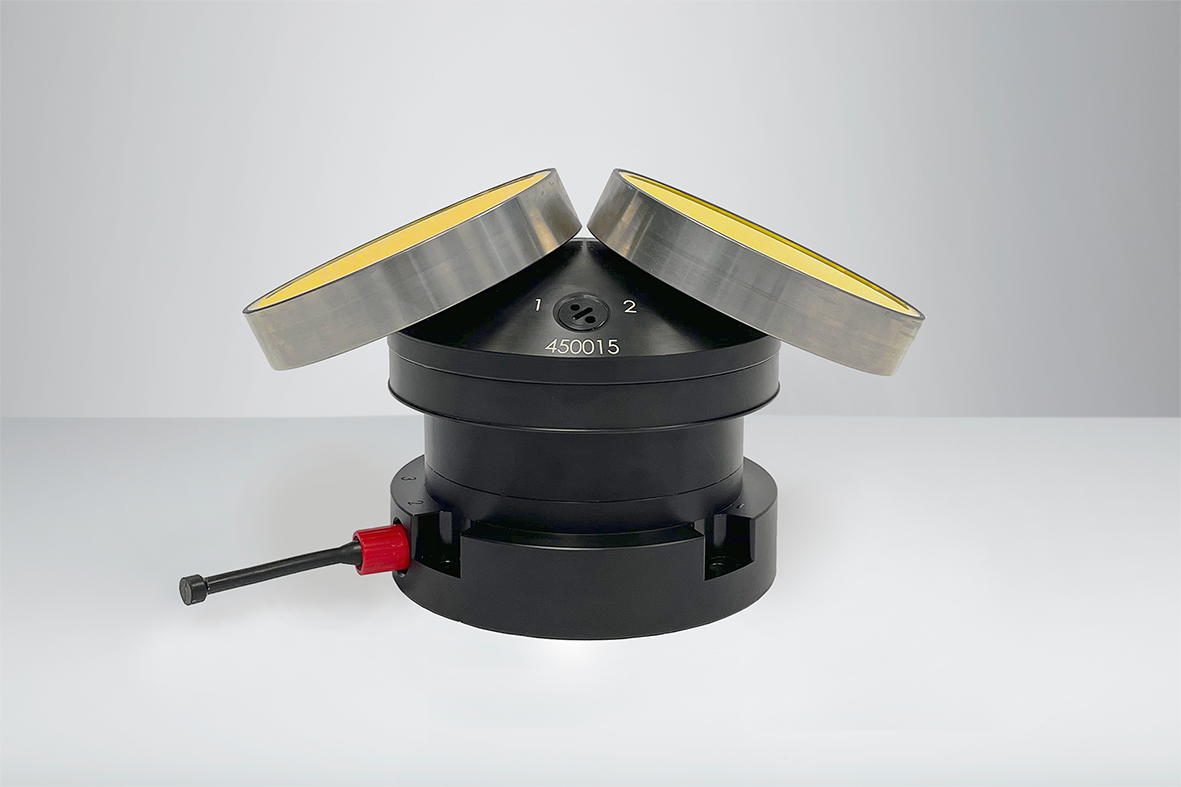

2D Horizontal Profiler 400 kHz
300 m, Generation 2Up to 130 m horizontal profiling range; ideal for side-wall applications
- Up to 130 m horizontal profiling range
- Ideal for wall-mounted applications
- Corrosion-free housing
Overview
The 2D Horizontal Profiler is the ideal tool for current measurements from a physical structure in, for example, port entrances. This ADCP provides the two horizontal flow components at multiple distances from the mounting and is commonly used in online applications where immediate access to current data is critical.
-
Currents
Highlights
-
Up to 130 m horizontal profiling range
-
Ideal for wall-mounted applications
-
Corrosion-free housing
Usage
-
Port entrances with challenging flow conditions
-
Flow measurements upstream and downstream of tidal turbines
-
Flow measurements from marine structures at draft depth
-
This instrument is used to perform river discharge measurements by River Insight.
Setup
The 2D Horizontal Profiler is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements.
Deployment
While the 2D Profiler can be mounted on any subsurface structure, it is commonly attached to infrastructure surrounding port openings. It can provide real-time current information via a variety of telemetry options.
Data
The 2D Horizontal Profiler provides users with the two horizontal components of flow at different distances away from the structure it is mounted on. These data are often retrieved in real time to ensure safety in operations in busy ports and harbors.
No technical specifications matched your search.
No technical documents matched your search.
No configurations matched your search.
No software matched your search.
Cable RS232 polyurethane with 8-pin inline connector and USB converter
Cable RS422 polyurethane with 8-pin inline connector and USB converter
Battery, 15 V - 1800 Wh, lithium- for use with legacy AWAC
An optional high-capacity lithium battery for legacy AWACs
Single aluminum battery canister w/cable to legacy AWAC 2-pin inline
Double aluminum battery canister w/cable to legacy AWAC 2-pin inline
Battery, 13.5 V - 540 Wh, alkaline- for use with legacy AWAC, Gen 2 Aquadopp, Gen 2 Vector
Battery pack, 5-pack, 13.5 V - 540 Wh, alkaline- for use with legacy AWAC, Gen 2 Aquadopp, Gen 2 Vector
Battery pack, 10-pack, 13.5 V - 540 Wh, alkaline- for use with legacy AWAC, Gen 2 Aquadopp, Gen 2 Vector
