Oceanography
Eco
50 mShallow-water current profiles in a groundbreaking new package. Appropriate for first-time ADCP users, small budgets or educational use.
- Seamless current profiles from 30cm to 20m from the instrument
- Automated data processing to ensure quality data reports with no prior ADCP experience
- Weighs only 1 kg in air and is only 13 cm tall
Overview

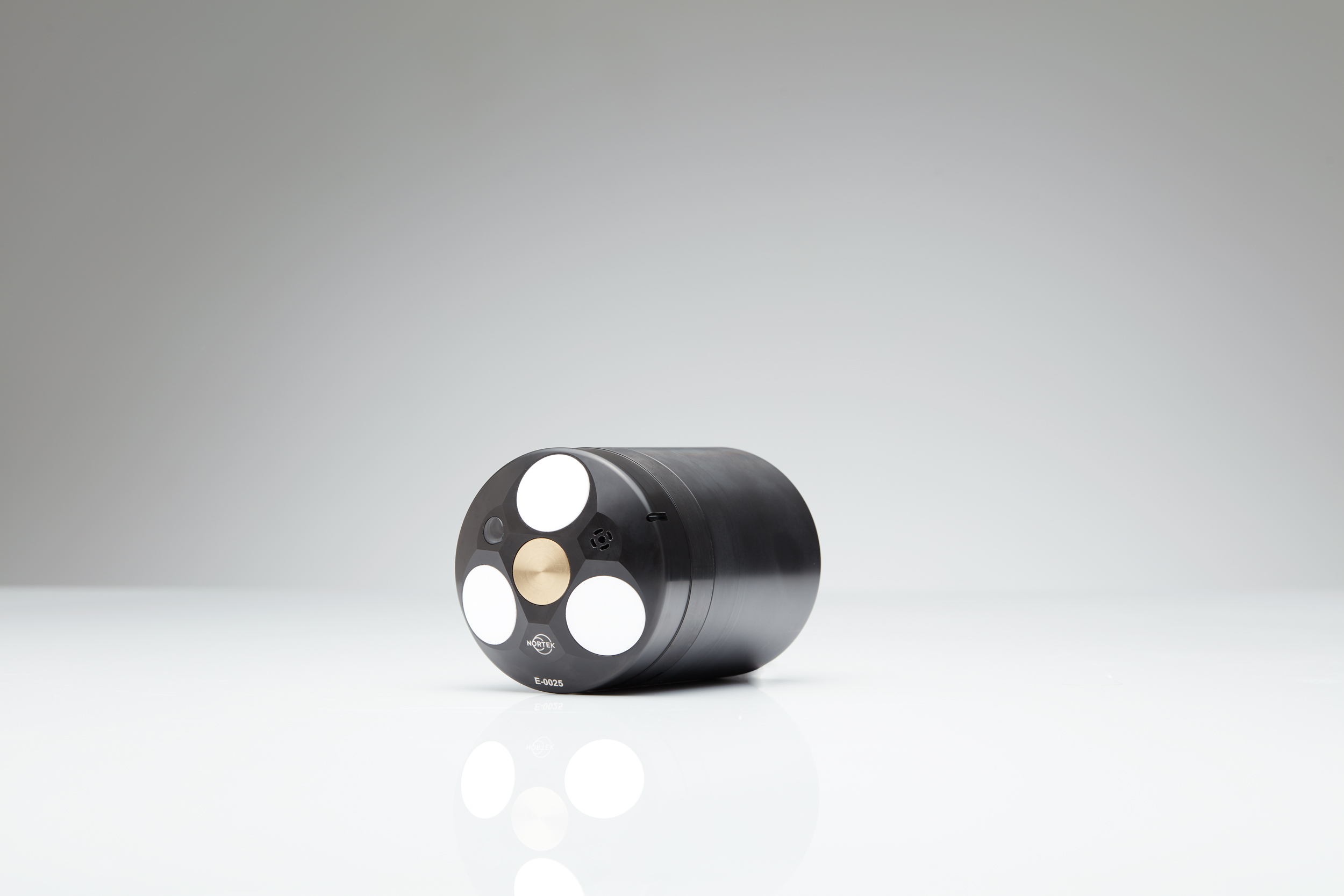

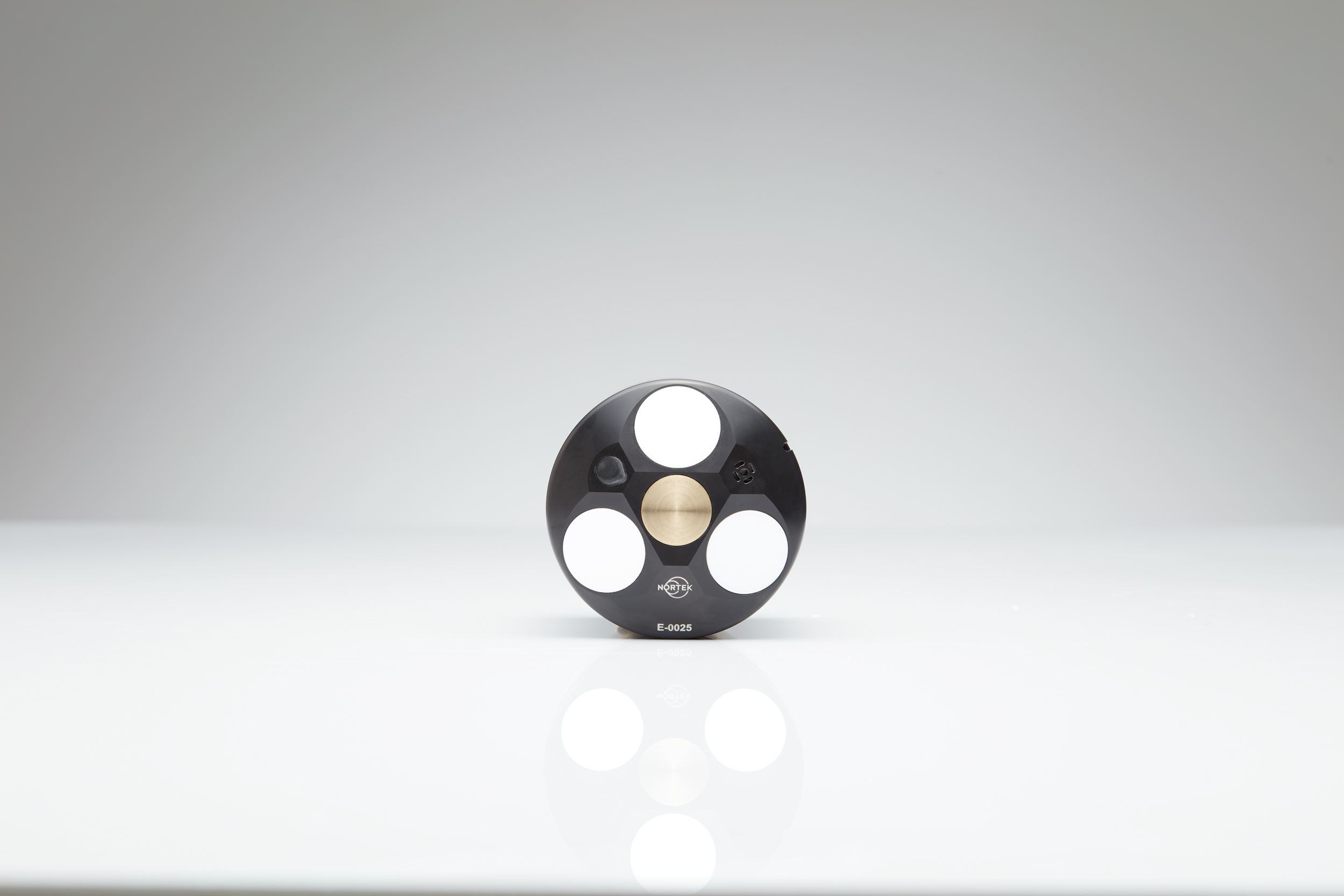

The Eco current profiler is the first ADCP right-sized and designed specifically for shallow-water measurements. It allows you to measure water velocities in situ, through the water column using the same acoustic Doppler technology as other Nortek instruments, but in a more affordable and easy-to-use package. Simple buoy and bottom-mount solutions are available and designed to fit Eco off-the-shelf. Eco is portable enough to be put in the water from a paddle board or kayak by one person. While the Eco does not feature many of the more complex capabilities of other Nortek instruments, such as wave measurements, turbulence estimation, or echosounder data, Eco does present a host of new, unique capabilities.
Read more about Eco's capabilities here.
-
Currents
Highlights
-
Self-configuring data collection in various depths and water types
-
Seamless current profiles from 30cm to 20m from the instrument
-
Built-in battery and inductive battery charger. No cables or connectors!
-
Integrated deployment and recovery system available
-
Built-in GNSS, temperature, pressure and tilt sensors
-
Automated data processing to ensure quality data reports with no prior ADCP experience
-
Weighs only 1 kg in air and is only 13 cm tall
Usage
-
Shallow-water estuarine studies
-
Short- and longer-term coral reef studies
-
Coastal engineering projects
-
Educational use with graduate students, undergraduates or young students
Setup
The Eco is configured online via the Eco WebApp through Bluetooth communication. Users need only to input their desired measurement interval (as little as 2min or as much as 1hr) and expected water salinity (fresh, salt, or a mix). Designed specifically for first-time users and students, the WebApp is also used to configure the Eco’s accompanying timed release.
Deployment

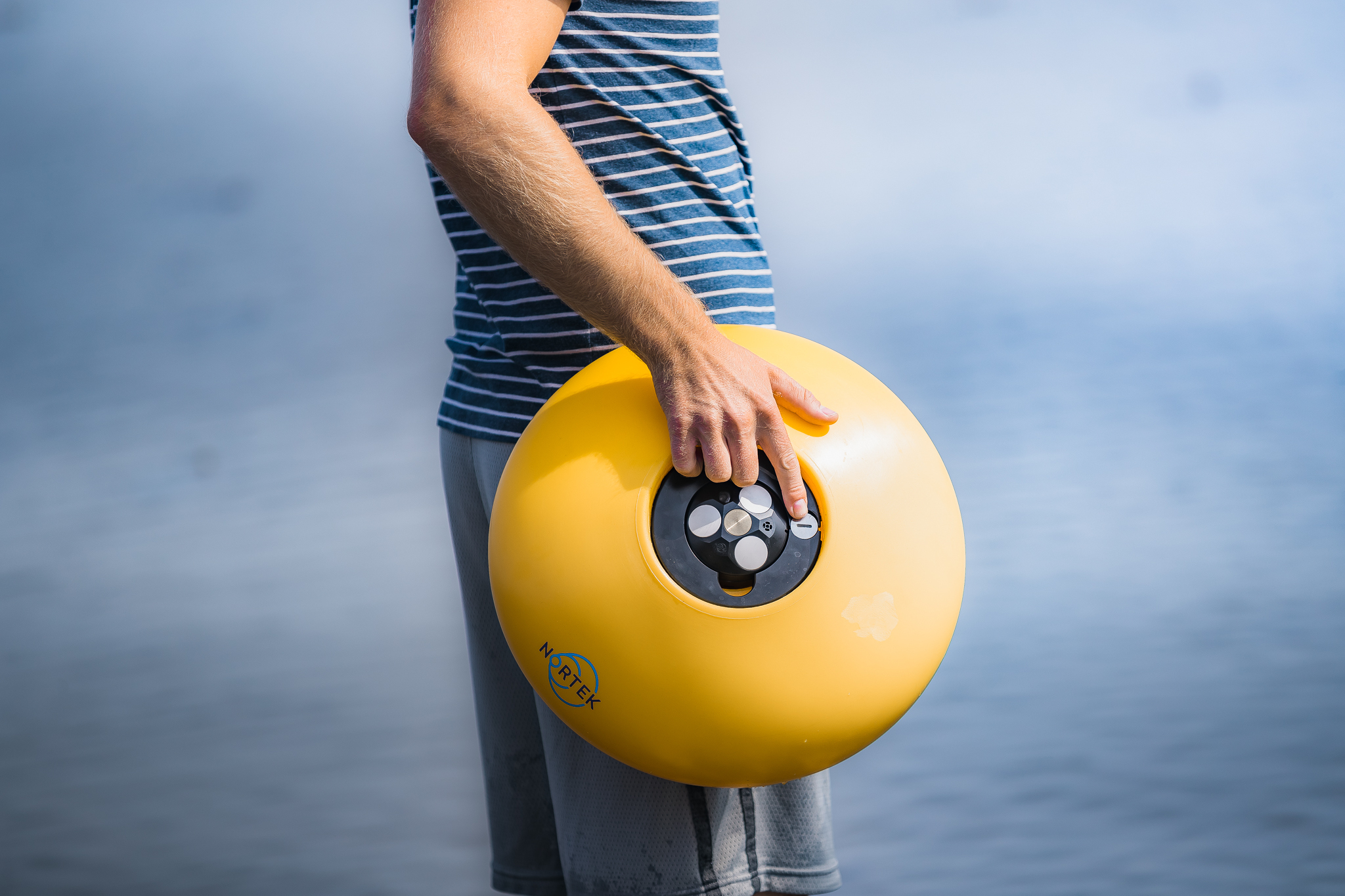

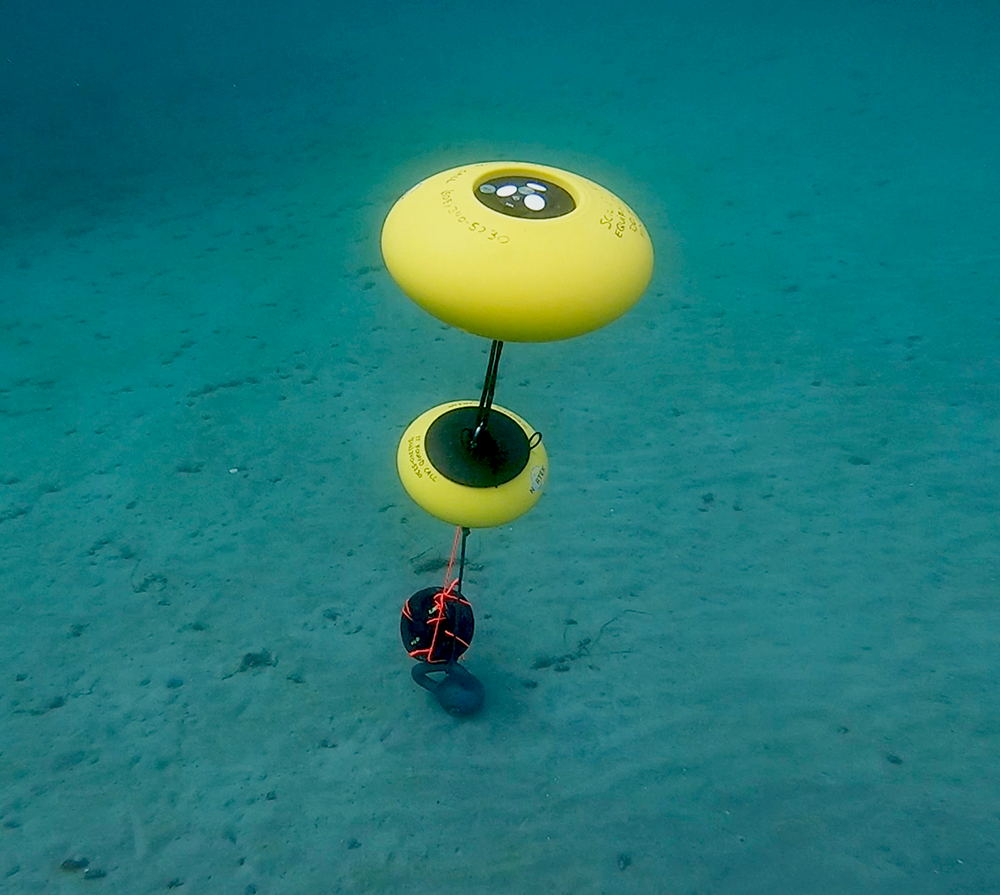

Two off-the-shelf deployment solutions are available for the Eco: a tripod for bottom-mounted deployments in shallow water, and a buoy system with a timed release for deployments in slightly deeper water. An LED on the Eco displays the Eco’s status and assures users of function.
Data
After recovery of the Eco, data is loaded back onto the WebApp via Bluetooth. Data processing is done automatically, including data quality controls accounting for sidelobe and fish interference, bin mapping and other common issues. Users are presented with current velocity in three depth layers. Raw data cannot be accessed.
No technical specifications matched your search.
No technical documents matched your search.
No software matched your search.
Support resources
Related content

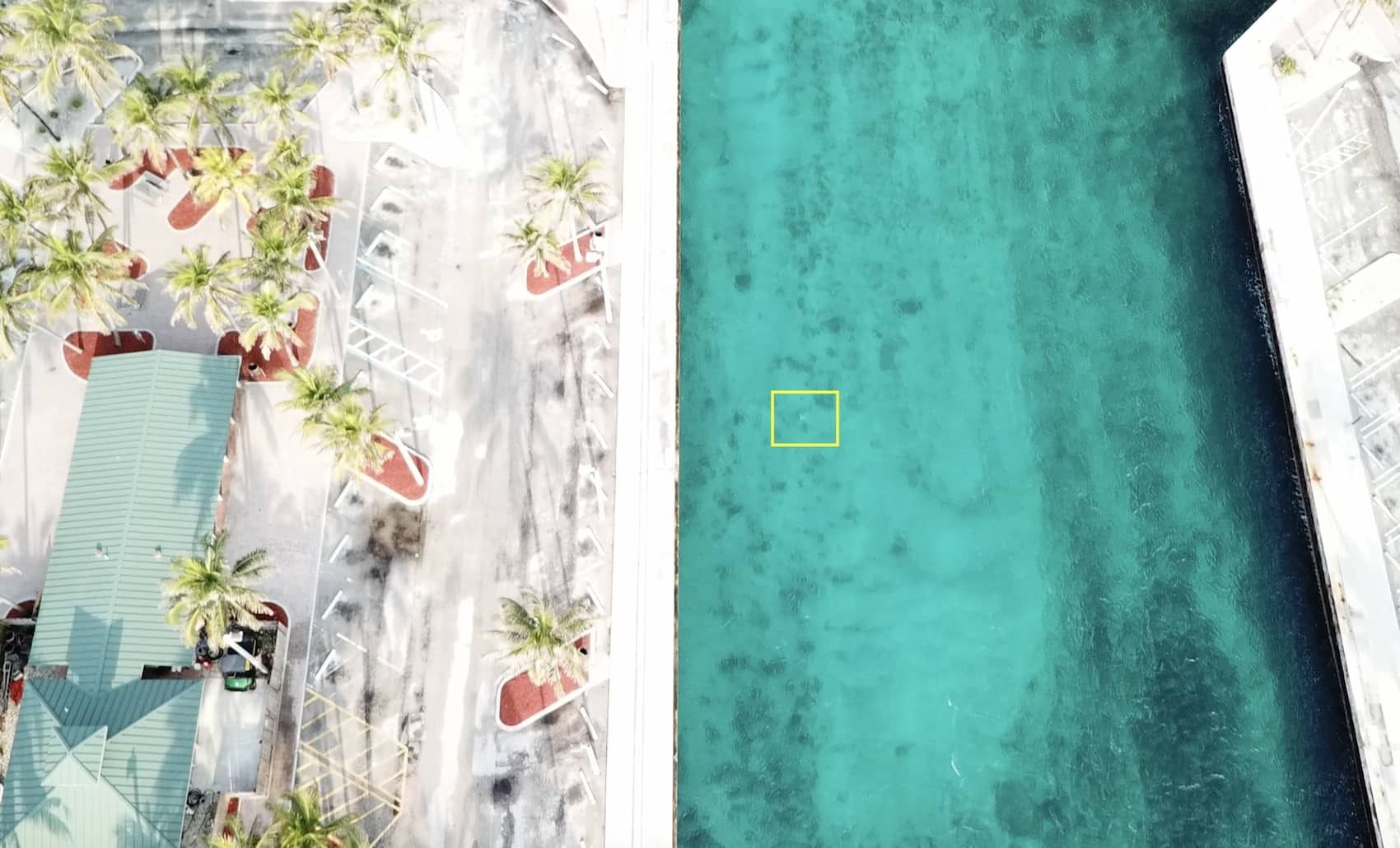

Identifying shallow-ocean currents in an unusual manta ray habitat with the Eco ADCP
