Oceanography
AWAC 400 kHz
300 m, Generation 2Real-time current profiles and directional waves with up to 100 m range
- Real-time current profiles and waves to 100 m range
- Acoustic surface tracking (AST) with vertical beam
- Can be used both with fixed frames and subsurface buoys
Overview
The AWAC 400 kHz ADCP has become the standard reference technology in submerged wave-measurement applications. Thousands of these ADCPs have been deployed to capture the full wave spectrum, in combination with current profiles. With a 100 m maximum range for wave measurements, 1.5 Hz sampling of the surface elevation and onboard wave processing for real-time applications, the AWAC 400 kHz is the optimal tool for deeper-water current and wave measurements.
The AWAC 2 design offers future-proof electronics, better performance and easier instrument maintenance.
See the details of the Generation 2 AWAC updates in the release notes here.
-
Currents
-
Waves
Highlights
-
Real-time current profiles and waves to 100 m range
-
Acoustic surface tracking (AST) with vertical beam
-
Can be used both with fixed frames and subsurface buoys
-
Onboard wave processing for real-time applications.
Usage
-
Online measurements of currents and waves at long ranges
-
Site studies for offshore wind platforms
-
Measurement campaigns where the full wave spectrum is needed
-
Monitoring of transient waves for channel wall protection
Setup
Designed for straightforward and reliable current and wave measurements in up to 100m of water, the AWAC 400kHz is configured using the AWAC deployment software before installation. The 400kHz AWAC’s wave measurement range is the longest of the AWAC family.
Deployment

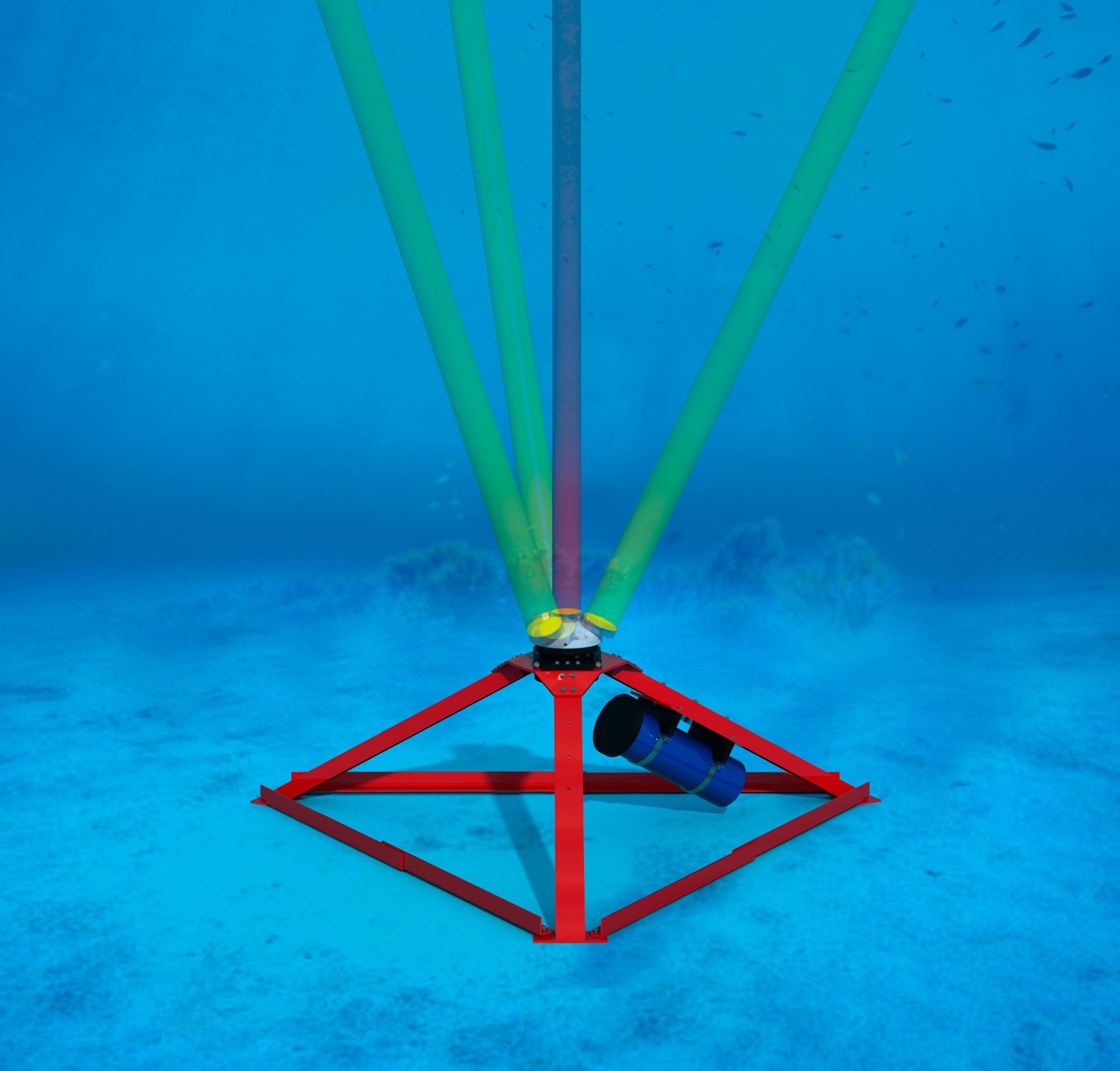

AWACs are often bottom-mounted and/or implemented as part of real-time wave monitoring systems. Leading industry partners offer bespoke frames and buoys for the AWAC.
Data
Optional onboard wave processing allows real-time streaming of wave parameters to users onshore. Nortek’s SUV processing method (exclusive to AWACs and Signatures) enables quality wave measurements from a moving subsurface buoy. Nortek postprocessing software and/or display software is available for review or visualization of data, after deployment or in real time.
No technical specifications matched your search.
No technical documents matched your search.
No software matched your search.
Battery, 19 V - 1800 Wh, lithium
An optional high-capacity lithium battery for Signature & Generation 2 AWAC instruments.
Cable, 10 m Ethernet cable with 6-pin
Cable, 10 m serial cable with 8-pin w/RS485 trigger
Double aluminum battery canister w/cable to Signature / Gen 2 AWAC, 2-pin Inline
Double aluminum battery canister w/cable to Signature / Gen 2 AWAC, 8-pin Inline
Single aluminum battery canister w/cable to Signature / Gen 2 AWAC, 2-pin Inline
Single aluminum battery canister w/cable for Signature / Gen 2 AWAC, 8-pin Inline
Battery, 27 V - 540 Wh, alkaline
The standard battery for Signature & Generation 2 AWAC instruments.
Battery pack, 5-pack, 27 V - 540 Wh, alkaline
The standard battery for Signature & Generation 2 AWAC instruments.
Battery pack, 10-pack, 27 V - 540 Wh, alkaline
The standard battery for Signature & Generation 2 AWAC instruments.
