Oceanography
Signature 100
1500 m | 6000 mLong-range current profiler designed for combined current profile and biomass measurements
- 300–400 m current profiling range
- Optional center beam with 70–120 kHz echosounder
Overview

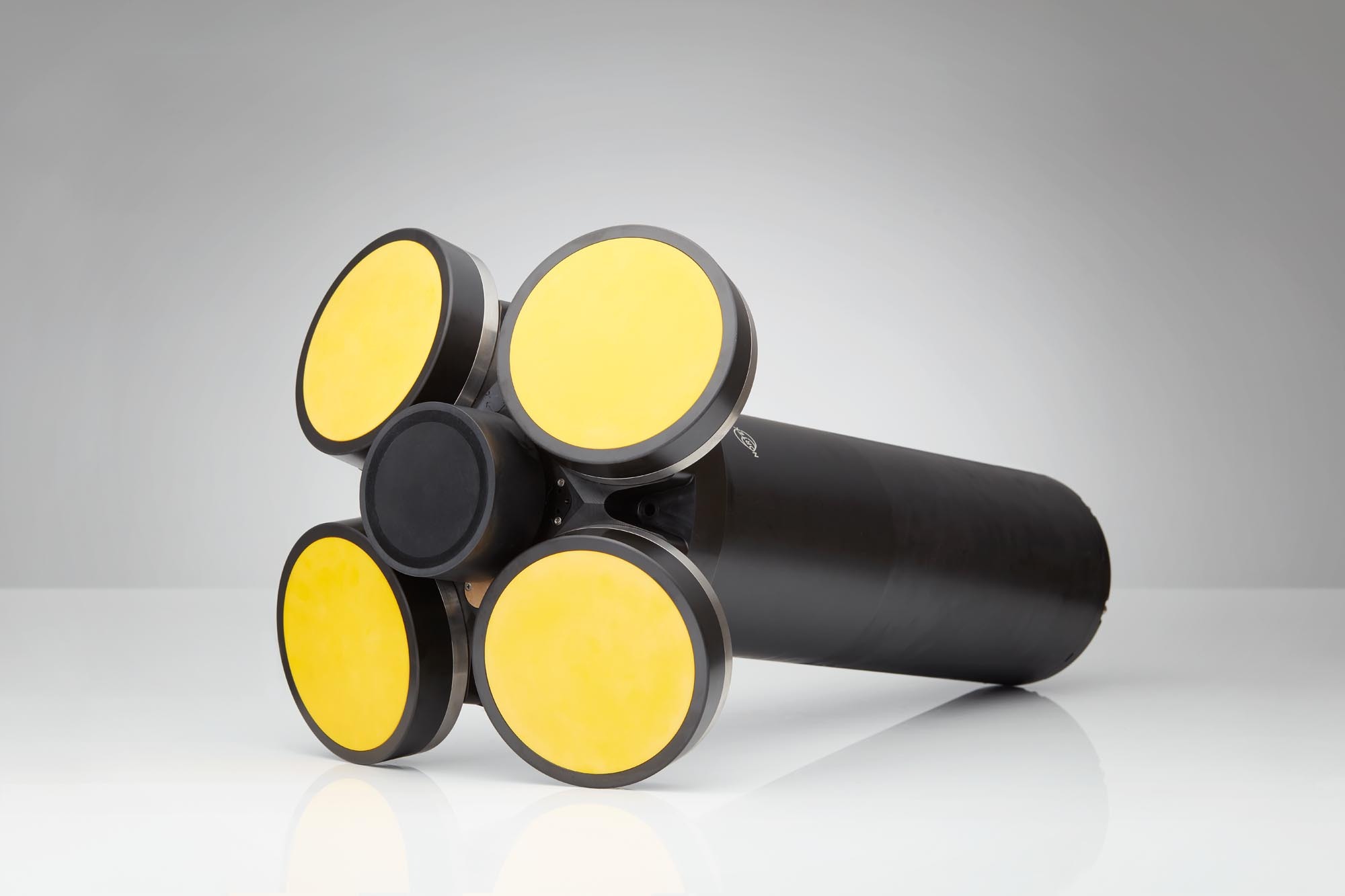

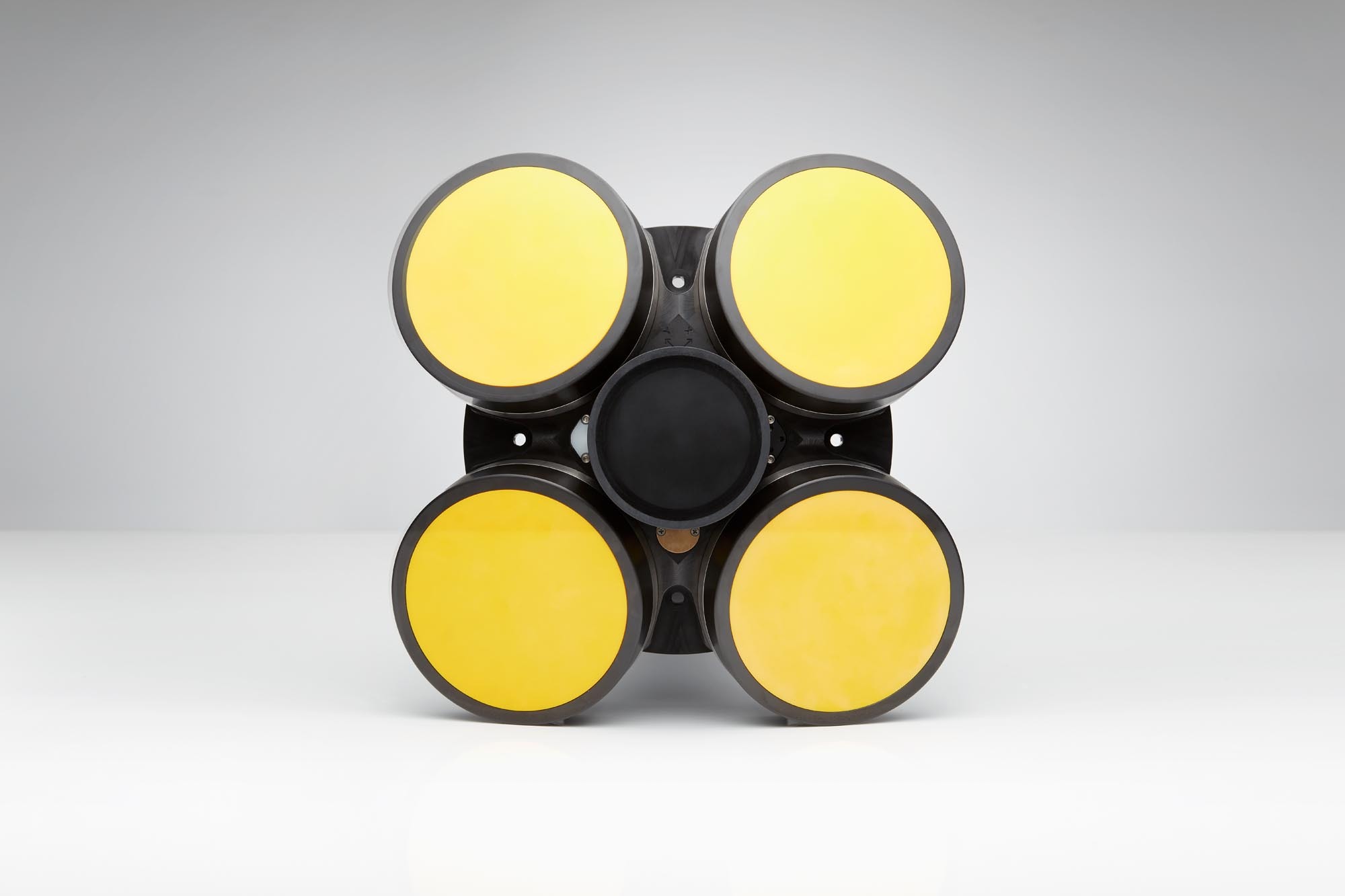

The Signature 100 combines a four-beam current profiler operating at 100 kHz with an optional scientific echosounder.
Both the current profiler and the biomass measurements have an effective range of 300-400 m providing unprecedented insight into the dynamics of zooplankton, krill or even schools of fish. Likewise, acoustic tracer material can give new insight into small-scale physical processes.
Download our guide to Signature ADCPs here.
-
Currents
-
Echosounder
Highlights
-
300–400 m current profiling range
-
Optional center beam with 70–120 kHz echosounder
Usage
-
Detection of krill or plankton in the water column with scientific echosounder
-
Upwelling and downwelling studies
-

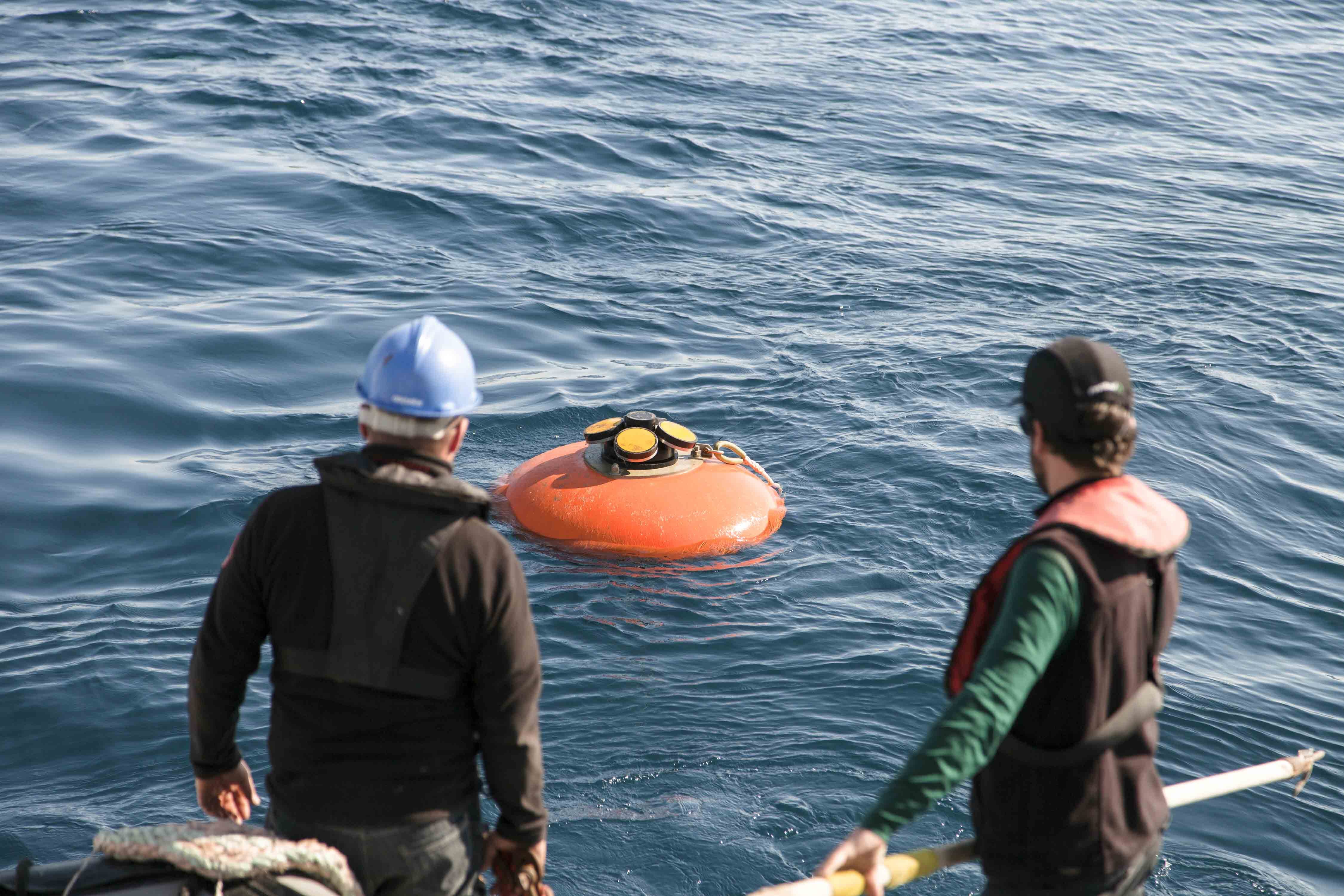

Suitable for buoy mounting with internal AHRS
Setup
The Signature Deployment software guides users through setup to ensure even the most detailed concurrent measurement schemes are handled correctly and makes certain all users can fully utilize the capabilities of the Signature ADCP.
Deployment

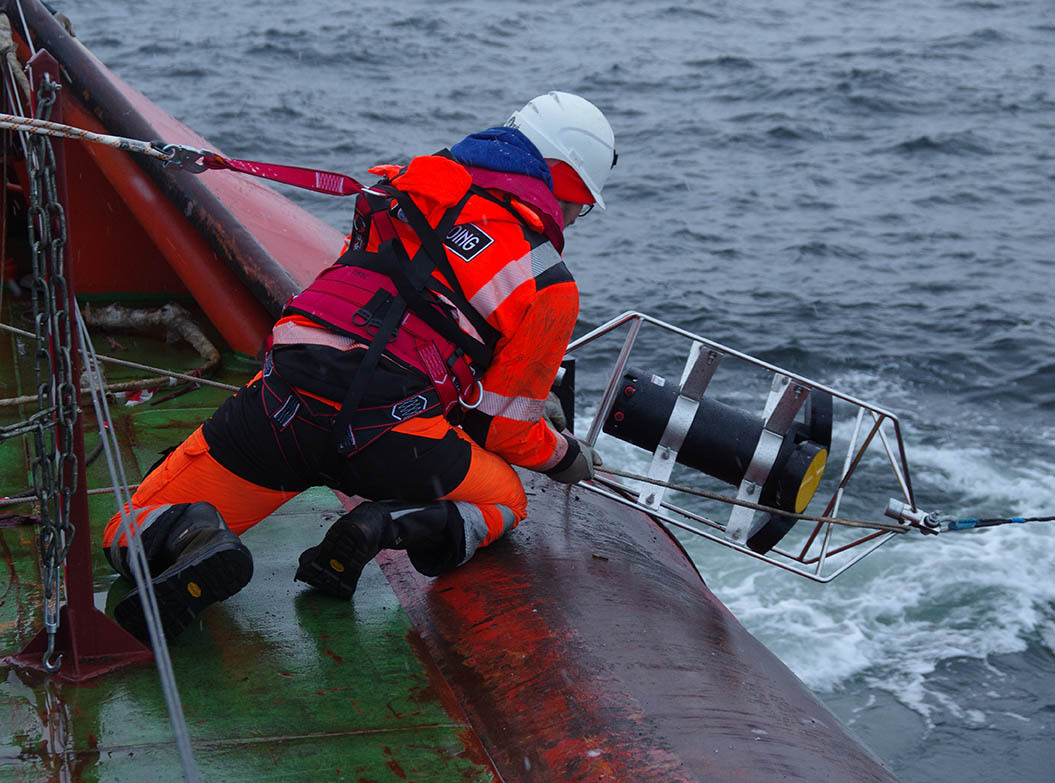

The Signature 100 offers dependable buoy and bottom frame solutions from Nortek and leading industry partners tailored for the instrument. Optional AHRS improves motion correction during buoy-mounted long-range current profiles.
Data
The combined scientific echosounder option enables users to collect concurrent velocity profiles and high-resolution echosounder data from a single instrument. Ocean Contour is a powerful postprocessing software created specifically for the AD2CP platform, and for expert-level biomass processing our industry partners at Echoview can be consulted.
No technical specifications matched your search.
No technical documents matched your search.
No configurations matched your search.
No software matched your search.
Cable, 10 m Ethernet cable with 6-pin
Cable, 10 m serial cable with 8-pin w/RS485 trigger
Battery, 19 V - 1800 Wh, lithium
An optional high-capacity lithium battery for Signature & Generation 2 AWAC instruments.
Single aluminum battery canister w/cable to Signature / Gen 2 AWAC, 2-pin Inline
Double aluminum battery canister w/cable to Signature / Gen 2 AWAC, 2-pin Inline
Battery, 27 V - 540 Wh, alkaline
The standard battery for Signature & Generation 2 AWAC instruments.
Battery pack, 5-pack, 27 V - 540 Wh, alkaline
The standard battery for Signature & Generation 2 AWAC instruments.
Battery pack, 10-pack, 27 V - 540 Wh, alkaline
The standard battery for Signature & Generation 2 AWAC instruments.
