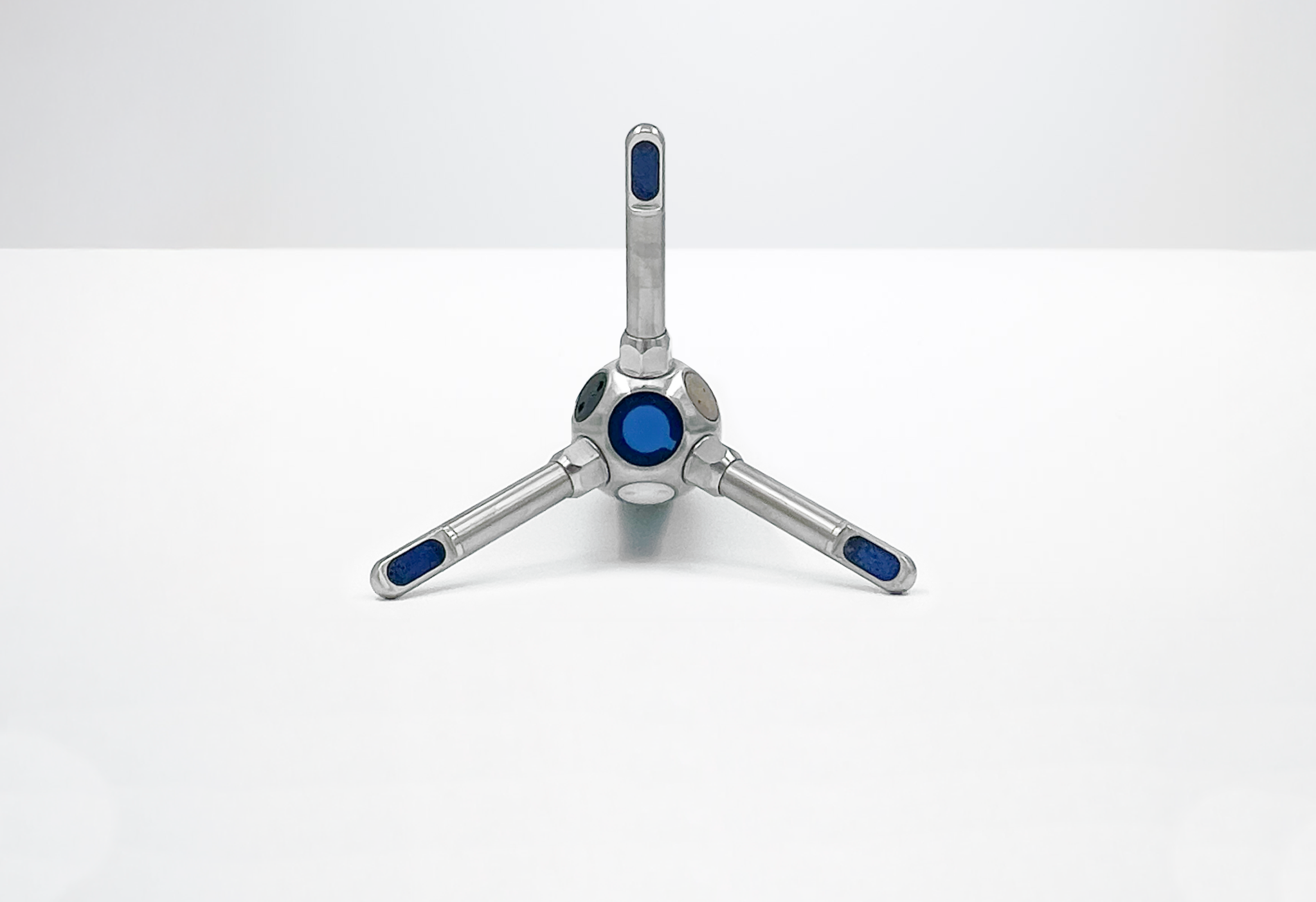

VECTOR 2 Front looking 2

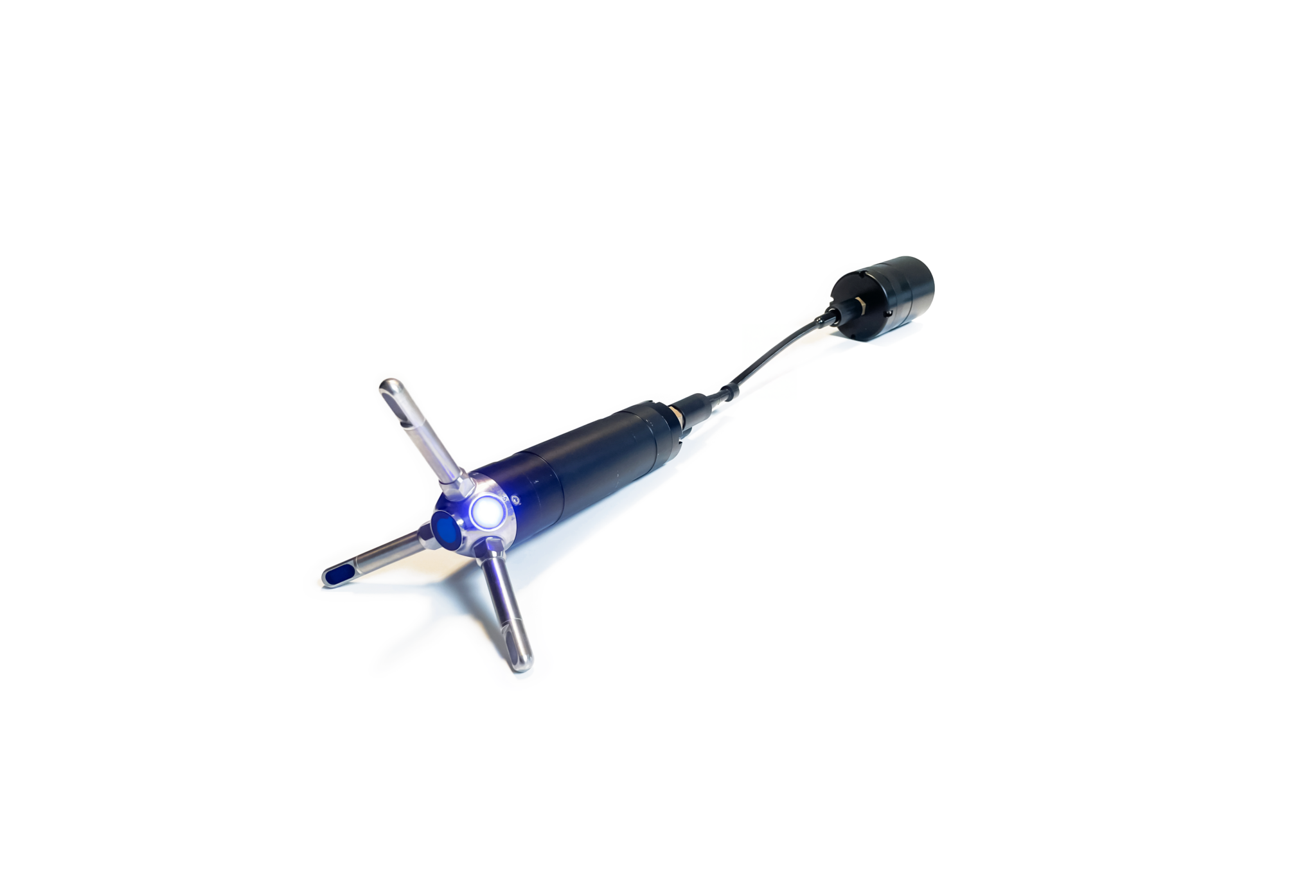

VECTOR 2 side looking with battery 1
VECTOR 2 Interface box back
IMG 0221
VECTOR 2 side looking png 1
VECTOR 2 Front looking 2
VECTOR 2 side looking with battery 1
VECTOR 2 Interface box back
IMG 0221

Oceanography

Vector

300 m, Generation 2

Sample 3D velocity at up to 64 Hz for small-scale research in coastal areas

  • Small-scale turbulence
  • Sampling up to 64 Hz
  • Optional echosounder mode

Overview

The Vector Generation 2 is a high-accuracy single-point current meter that is capable of acquiring 3D velocity in a very small volume at rates up to 64 Hz. It is widely used for sediment transport applications, small-scale turbulence measurements and coastal engineering studies. It has an excellent track record of delivering outstanding data quality in a variety of applications. This version is suitable for use down to a depth of 300 m.

View Release Notes for the Generation 2 Vector.

  • Currents
  • Turbulence
  • Waves

Highlights

  • Small-scale turbulence
  • Sampling up to 64 Hz
  • Small sampling volume for measurements close to boundaries
  • Optional echosounder mode

Usage

  • Wave orbital studies
  • Studies of bottom boundary layers
  • Turbulence studies
  • Large flume measurements

Setup

This 300m-rated velocimeter is set up using the Nortek Deployment software which offers a simplified workflow for configuring instrument parameters, managing sensor settings, and initiating deployments.

Deployment

Designed for small-scale turbulence sampling or collecting measurements near boundaries, the small size of the Generation 2 Vector allows for flexible deployment setups. The Generation 2 Vector has an LED which links at the user-defined sampling rate to indicate it is collecting data.

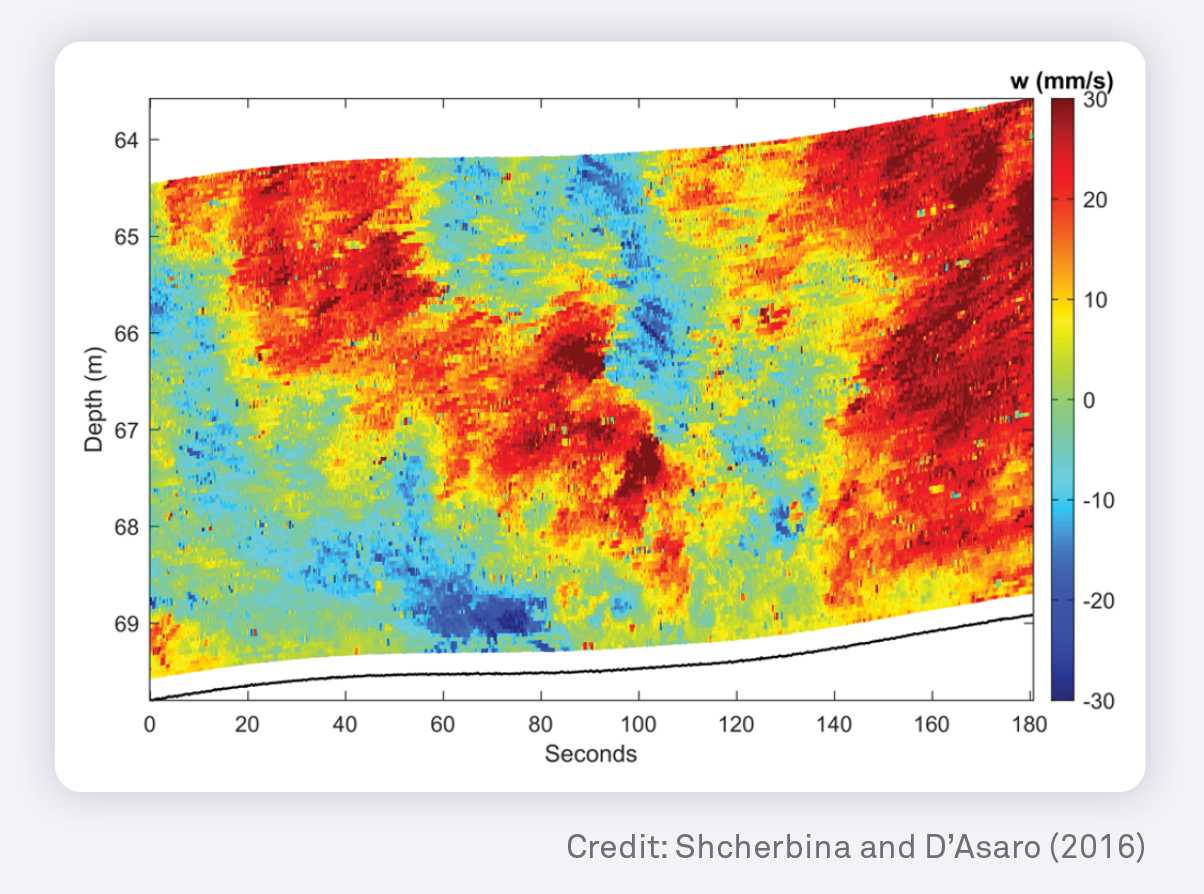

Data

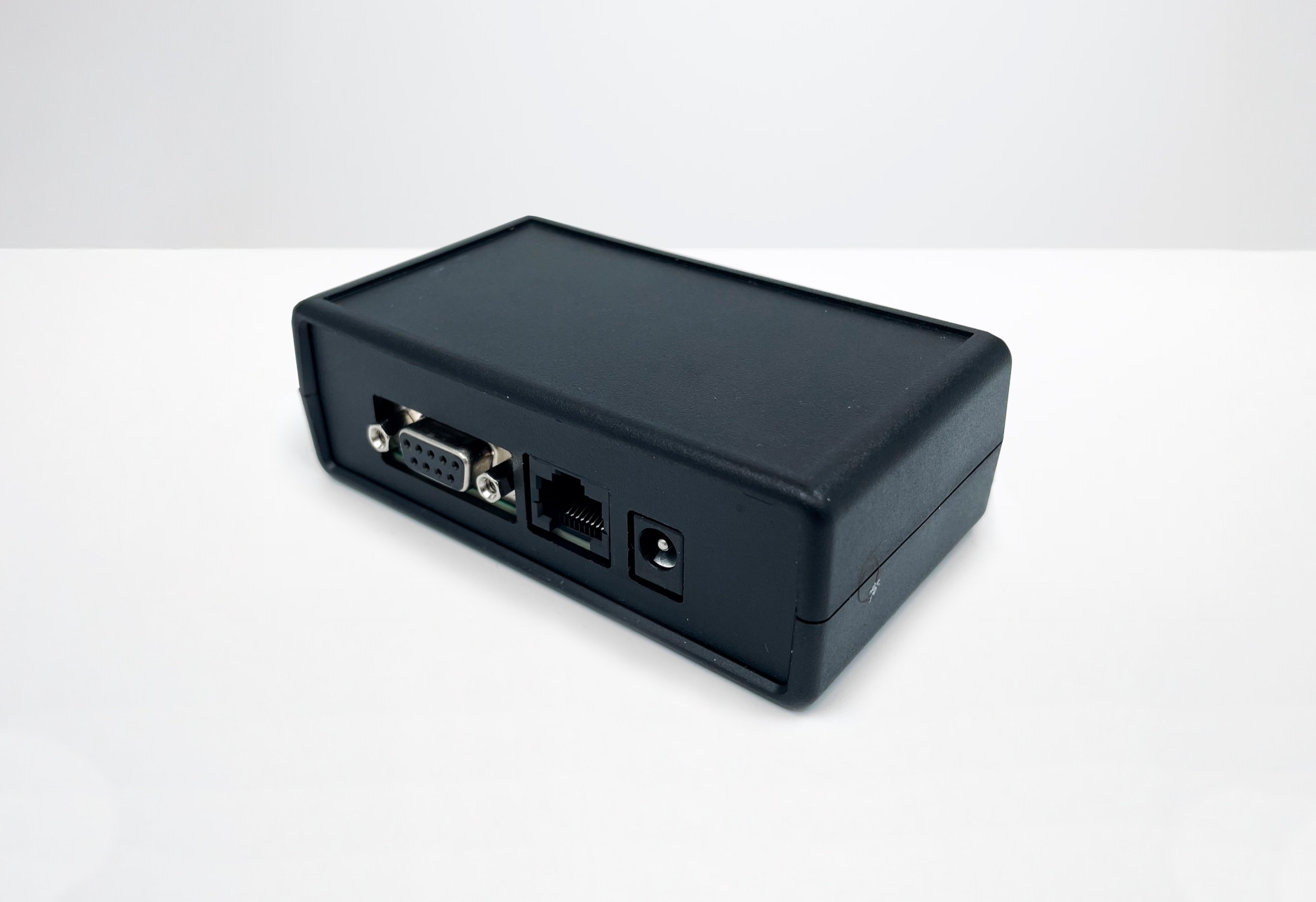

The Vector provides precise, rapid velocity measurements from a very small sampling volume of water. The Generation 2 Vector supports both Ethernet and serial (RS-422) communications using an interface box that supports both these protocols using a single cable to the instrument.

Download PDF

Water velocity measurements

Maximum profiling range

N/A

Distance from probe

0.15 m

Sampling volume diameter

15 mm

Sampling volume height (user-selectable)

8 mm

Cell size

N/A

Velocity range

±0.01, 0.1, 0.3, 1, 2, 4, 7 m/s (software-selectable) *

Adaptive ping interval

N/A

Accuracy

±0.5% of measured value ±1 mm/s

Velocity precision

typ. 1% of velocity range (at 16 Hz)

Sampling rate (output)

1-64 Hz

Internal sampling rate

1-703 Hz

* The velocity range is not the same in the horizontal and vertical direction. Please refer to the configuration software.

Distance measurements

Minimum range

N/A

Maximum range

N/A

Cell size

N/A

Accuracy

N/A

Sampling rate

N/A

Echo intensity

Acoustic frequency

6 MHz

Resolution

0.01 dB

Dynamic range

84 dB

Sensors

Temperature:

I2C temperature sensor in probe head

Temp. range

-4 to +40 °C

Temp. accuracy/resolution

0.1 °C/0.01 °C

Temp. time response

10 min

Compass:

Magnetometer

Accuracy/resolution

2°/0.1° for tilt < 20°

Tilt:

Solid state, full 3D

Accuracy/resolution

0.2°/0.1°

Maximum tilt

Full 3D

Up or Down

Automatic detect

Pressure:

Piezoresistive

Standard range

0-300 m (inquire for options)

Accuracy/precision

0.5% FS / Better than 0.005% of full scale

External inputs

No. of analog channels

None

Digital channels

1x RS485*

Supply voltage to external sensors

Fixed 5V or 12V

*Pyroscience Aquaphox supported

Data recording

Capacity (standard):

16/64/128/256 GB SD card

Real-time clock

Accuracy

±1 min/year

Backup in absence of power

4 weeks

Data communications

I/O

RS-422 or Ethernet, user-selectable

Communication baud rate

115200-921600 Baud

Recorder download baud rate

Fast Ethernet 100BASE-TX (90 s per GB)

User control

Nortek Deployment software

Analog outputs

None

Output range

None

Synchronization

RS-485 sync out

Connectors

Bulkhead (Impulse)

MCBH-8-FS + MCBH-6-FS for Communication and external sensor

Cable

PMCIL-8-MP on 5m polyurethane cable (inquire for options)

Software

Functions

Nortek Deployment SW, instrument configuration, live display, export to ASCII and MATLAB. Data view in Nortek Insight

Power

DC input

9-24V DC

Maximum peak current

2 A

Max. consumption

2.7 W at 64 Hz

Typical consumption, 4 Hz

2 W

Sleep consumption

< 150 μA

Transmit power

12 dB in 1 dB adjustable levels

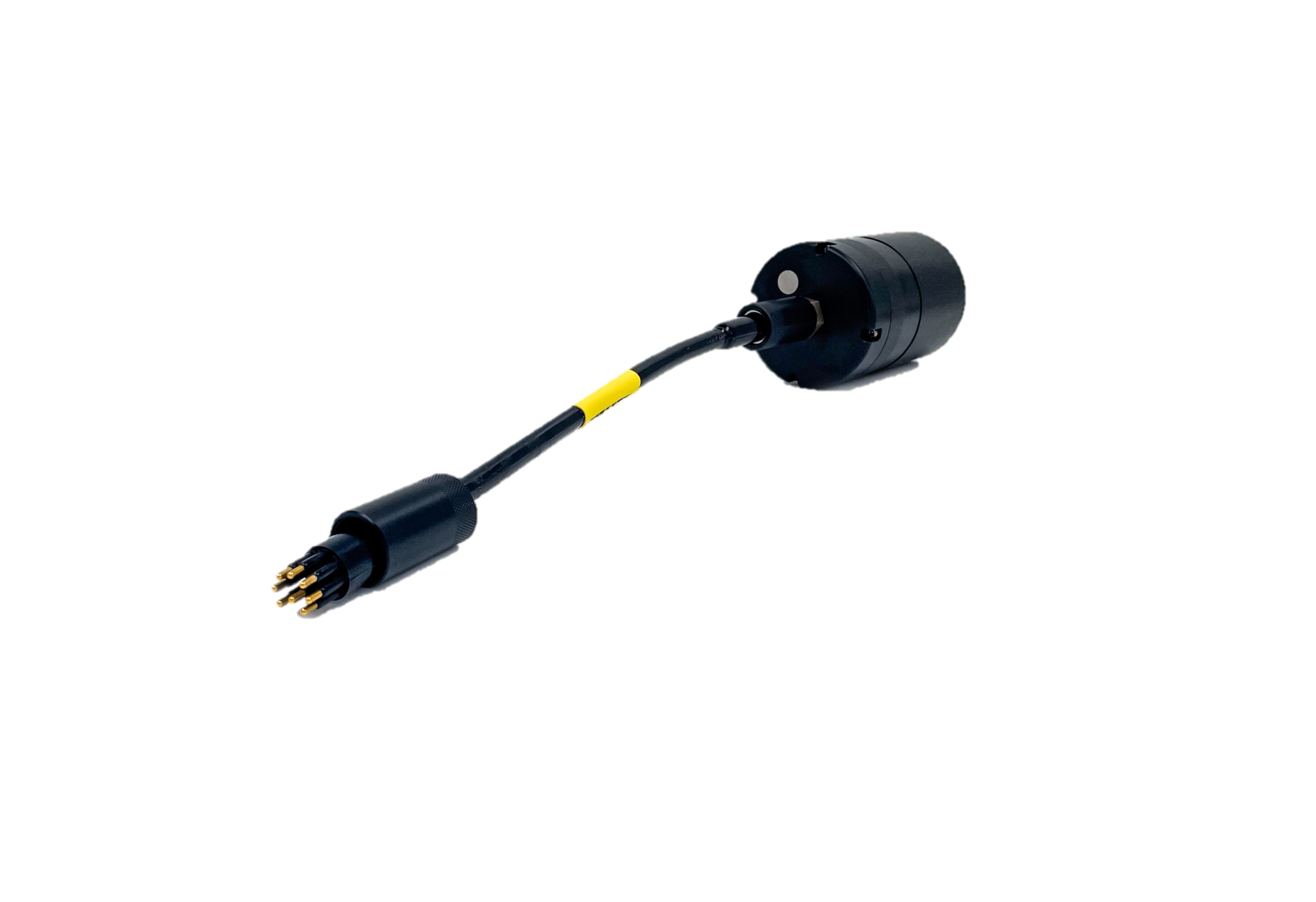

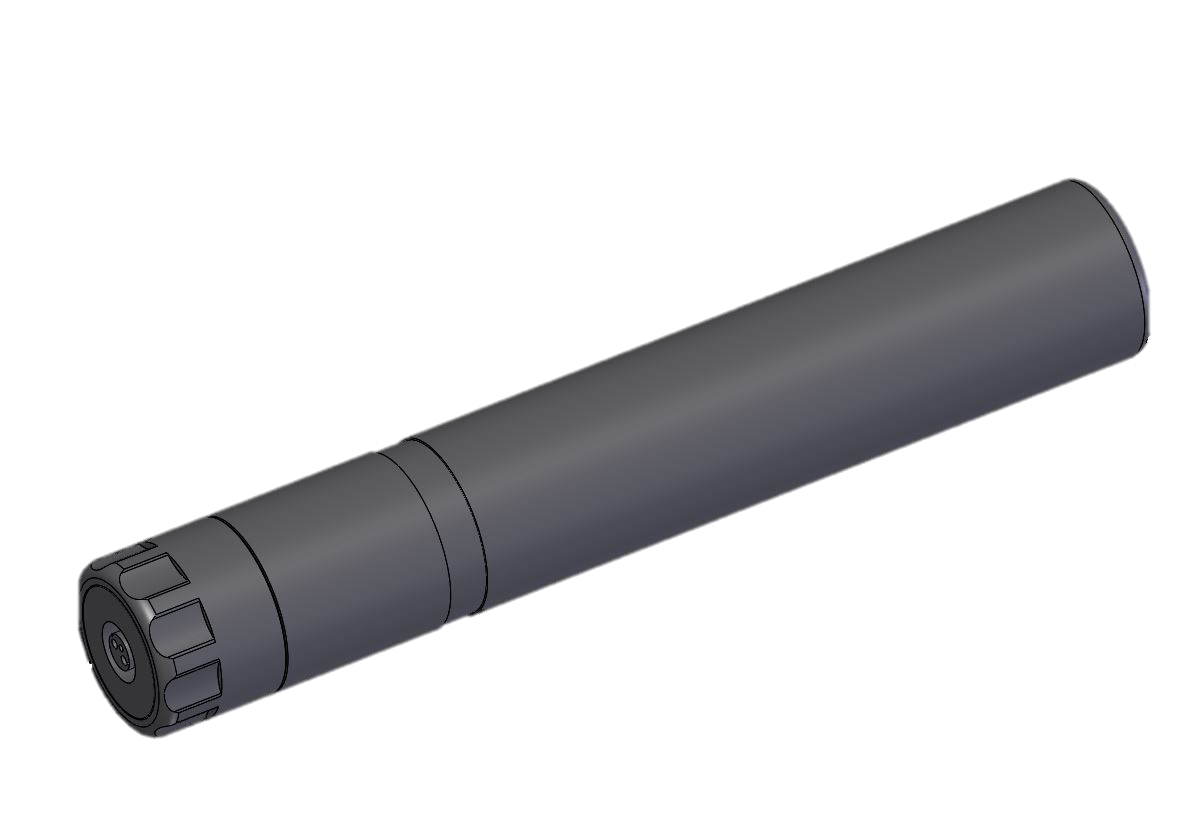

Batteries

Battery capacity

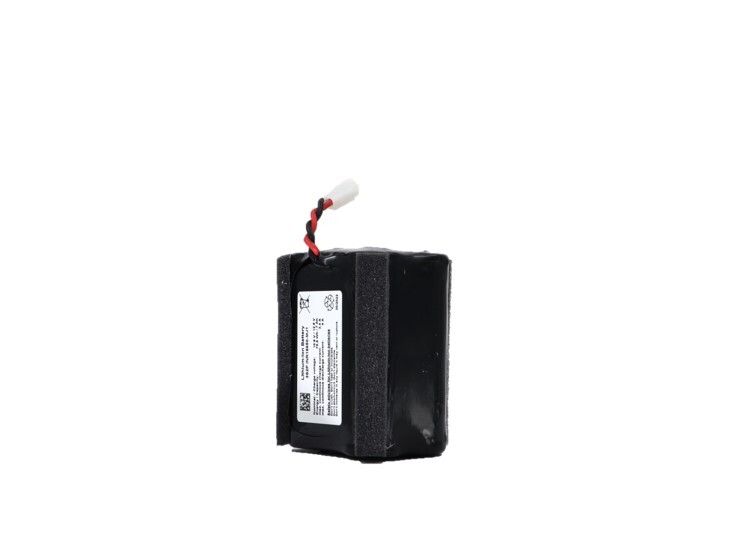

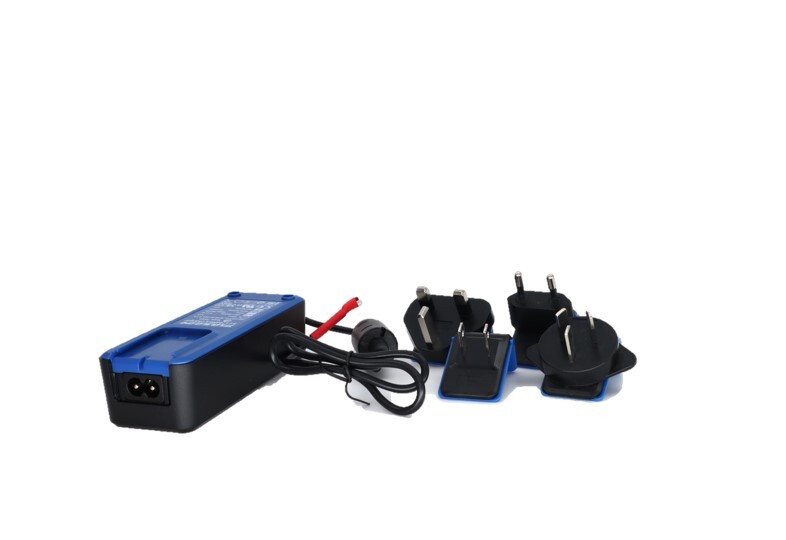

External 76 Wh Li-ion battery pack (inquire for options)

New battery voltage

12.6 V

Data collection capacity

Refer to planning section in software

Environmental

Operating temperature

-4 to +40 °C

Storage temperature

-20 to +60 °C

Vibration

IEC 60068-2-64, IEC 60068-2-27

Depth rating

300m

Materials

Standard model

Delrin® housing. Titanium probe and screws.

Dimensions (see drawings for details)

Maximum diameter

48 mm

Maximum length

250 mm total

Weight

Weight in air

690 g (instrument only), 1410 g (instrument with small battery canister for rechargeable battery)

Weight in water

275 g (instrument only), 505 g (instrument with small battery canister for rechargeable battery)

Options

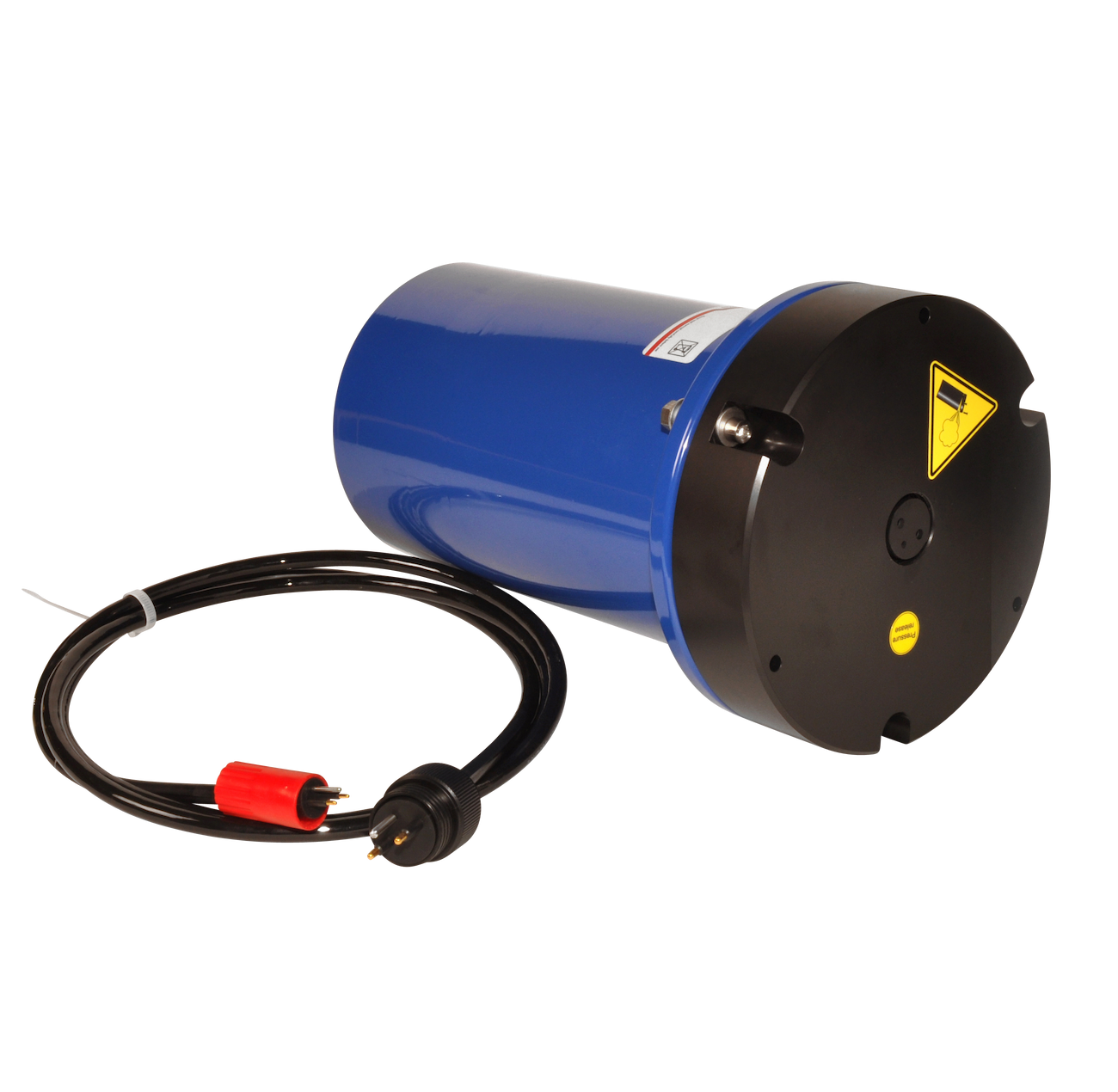

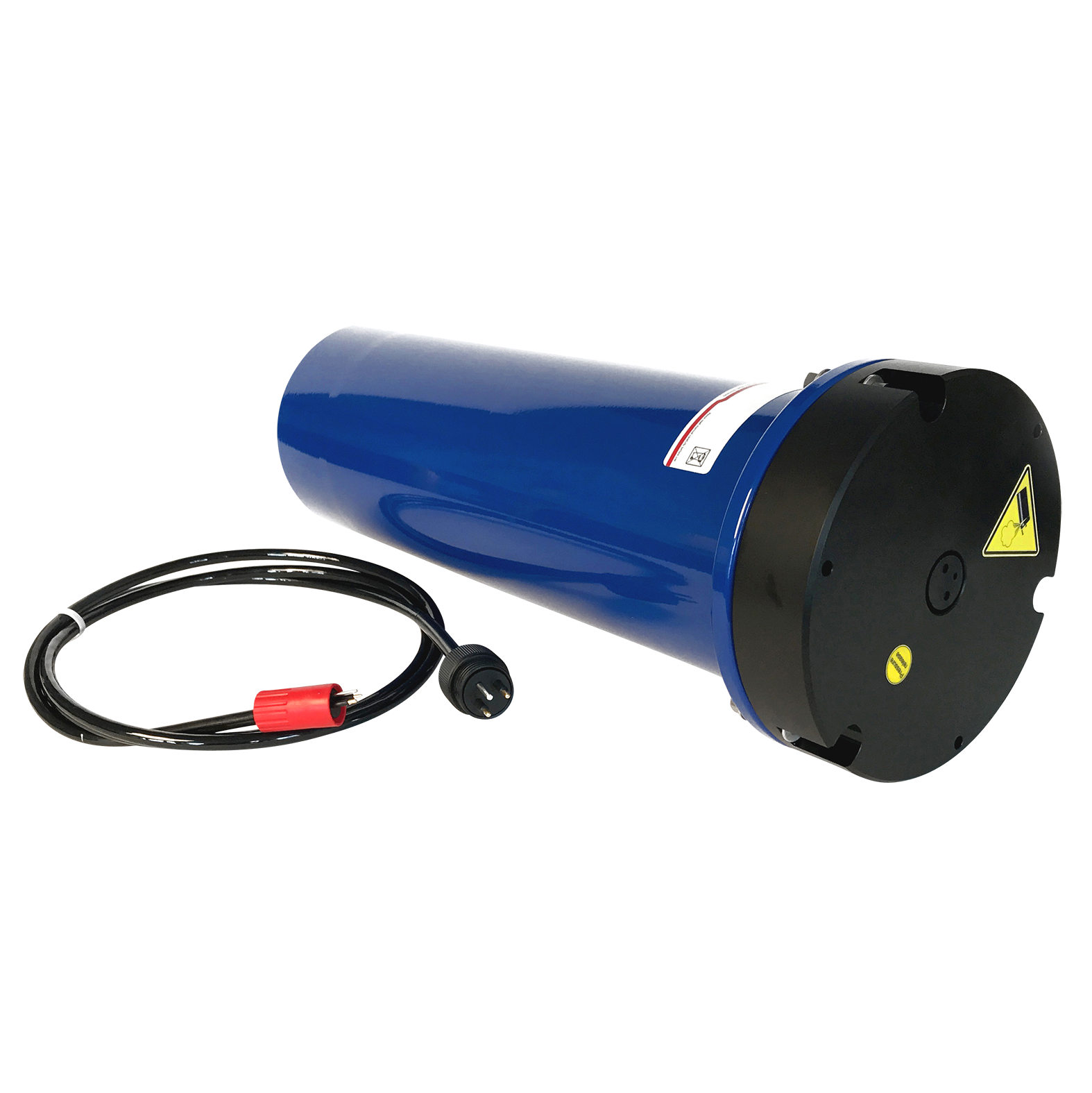

Alkaline, lithium or Li-ion external batteries

Single frequency echosounder mode: 6Mhz, 80 cm max range, 2 mm resolution (not simultaneous with velocity measurement)

Request a quote

Found the right product? Fill out the form to request a quote.

Cart

Total $0.00
Next

In the final step you can choose to pay by card or generate a quote PDF.
